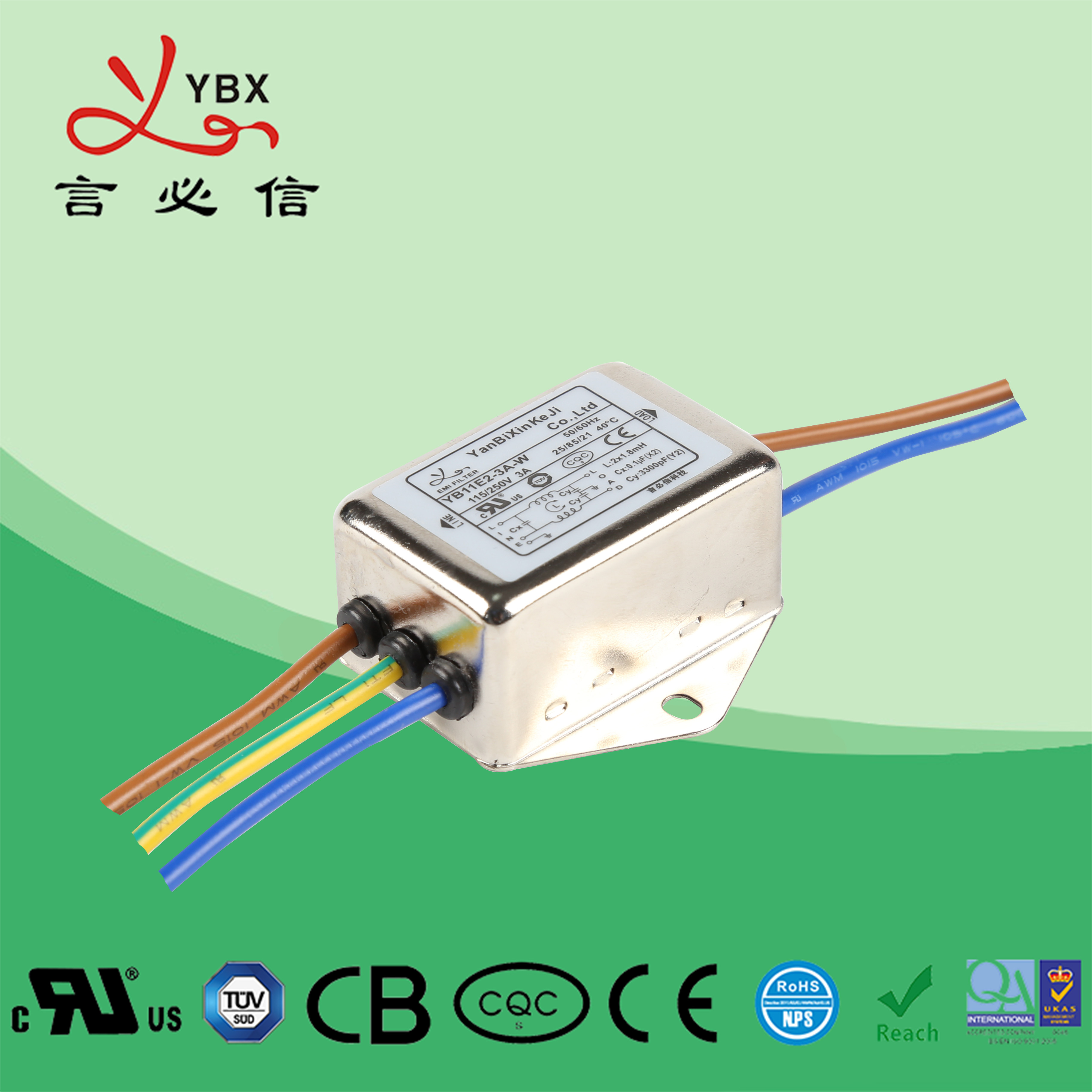

6A 250VAC EMC Single Line Filter Low Pass Emi Filter For Power
Supply
| Item | Power line Filter |
| Model | Power line Filter YB-E |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~15A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | USD1~5.3/Meter |
| Lead Time | 5~20 weekday |
Features:
-- The compact size can be applied to various situations.
-- YB11 filters are also available as two-stage filters(YB35)
in noisy environmment.
-- There are a variety of parts and combinations to meet
different customer's EMC tests.
-- Customized products according to customer's requirements.
Typical Applications
1. Single-phase power supplies, switch-mode power supplies
2. Small to medium-sized machines and household equipment
3. Portable electrical and electronic equipment
4. Test and measurement equipment
5. Safety tester
6. Automated optical inspection (AOI)
7. SMPS
8. Medical device (not body-coupled)
9. Portable electrical and electronic equipment
Rule of Nomination:
YB 11 E1 -
10A -
Q
( R 5 )
¦
¦
¦
¦
¦ ¦
circuit case
current connection optional
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Bleeder resistor(optional) | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11E1-1A | 1A | Q | - | W | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11E1-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E1-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E1-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E1-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E1-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E1-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E2-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E2-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E2-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E2-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E2-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E2-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E2-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E3-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E3-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E3-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E3-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E3-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E3-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E3-10A | 10A | Q | - | W | - | Fig.1 |

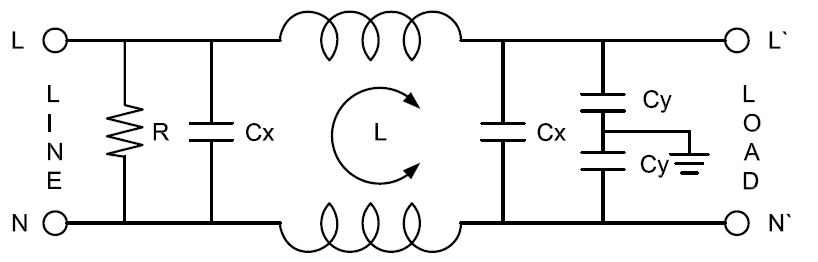

Electrical schematic:

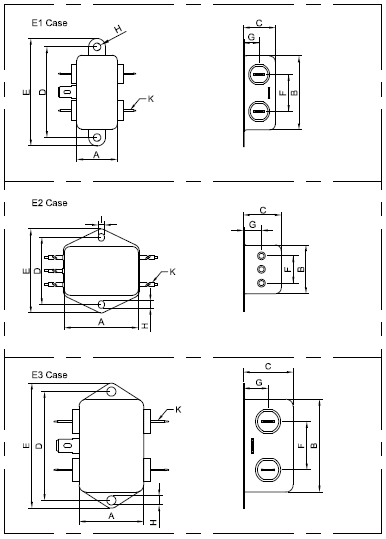

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
|
| E1 | 24 | 44 | 19 | 54.5 | 64.5 | 23 | 9.5 | 4.5 | | | 6.3*0.8 |
|
| E2 | 44 | 29 | 22 | 40 | 50 | 15 | 8 | 4.5 | 3.5 | | UL1015 |
|
| E3 | 32 | 46 | 22.5 | 54 | 62 | 24 | 12.5 | 4.5 | | | 6.3*0.8 |
|
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 |
|
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode
--------
differential mode
1A
3A
6A
8A
10A
