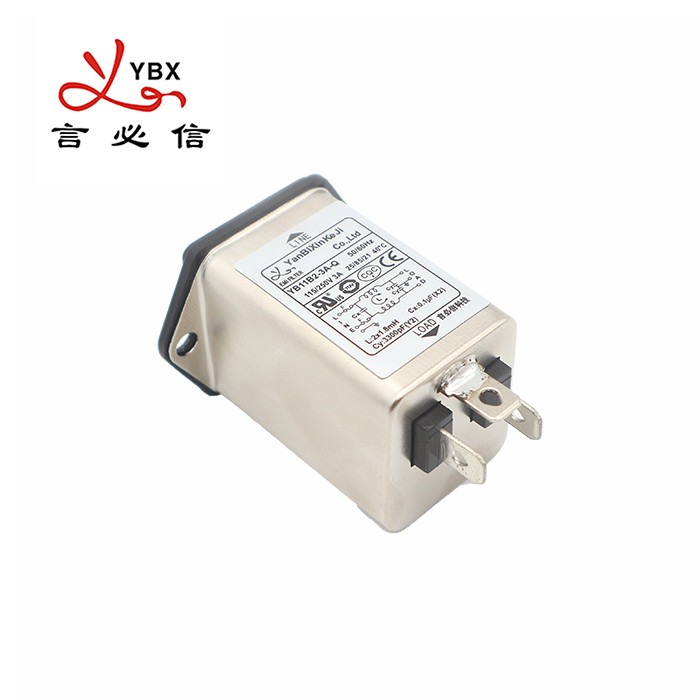

1.General Low Pass Single Phase EMI Power Filter 1~10A Current 250V
Voltage
2.Product Description
| Product | EMI Power Filter YB-B Seires |
| Model | YB11B2-3A |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 10~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 500VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | Negotiable |
| Lead Time | 5~20 weekday |

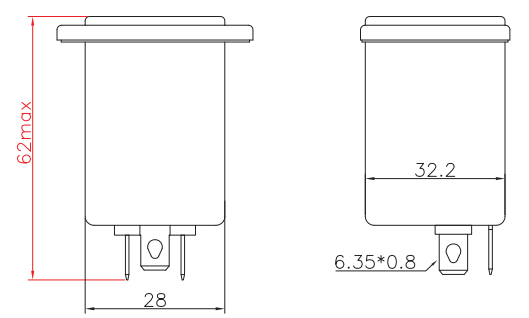

Dimensions:

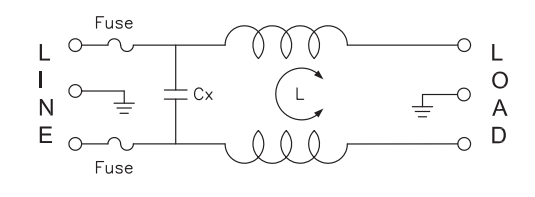

Electrical principle:
Naming Rule:
YB 11-------B2----------3A-------------Q/S/T/B
|
|
|
|
circuit case
current connection
Q:Fast-on terminal
S:
Screw
T:
Terminal Block
B:
Copper bar
3.Application Field
--LED lighting equipment
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles
4.Who we are
Shenzhen Yanbixin Technology Co., Ltd. was founded in 2008, is a
collection of electromagnetic compatibility (EMC)& EMI FILTER
products research and development, production, sales as one of the
national high-tech enterprises. We have industry leading certifications, cUL/UL, TUV, CQC, CE, CB,
ENEC, ROHS, REACH.
Products are divided into AC, DC, military, harmonic, pulse group,
signal and other specifications of filters; In medical, home
appliances, elevators, sports equipment, instrumentation,
automation equipment, Internet of Things equipment, communication
equipment, new energy vehicles, high-speed rail, aircraft, ships,
security equipment and other industries and fields have been widely
used.
5.Why choose us
--After years of efforts of the company's personnel, products
successively obtained the cUL,TUV,CQC, CE, ROSH certifications.
--We have a professional R&D team; our aims is we won't let
customers spend any extra money!
--National high-tech enterprises, brand assurance, reliable
quality, and we have the relevant product certifications
--We cooperate with top scientific research laboratories to provide
free EMC rectification technical support, samples; and free
conduction test.
--Automation technology, scale production, great price,excellent,
service, fast delivery! Free replacement within three months, free
maintenance within six years, life-long maintenance!
6.Certification of Products
We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other
certifications.
7. FAQ
Q1: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production
experience.
Q2: What is the price of the product?
A: Detailed price please consult our salesman, our salesman will give
you a quote according to the model, dosage etc.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for
samples; 10 to 15 for small orders, 15-25days for mass production
after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order. Please contact
us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than
5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before
shipment, and a balance against shipment. And we also accept the
L/C, Western Union, Paypal, etc.
Q5: What kind of after-sale service do you offer?
A: Quality assurance:free replacement within 3 months, free repair
within 6 years, lifelong maintenance.
