YB11E2-6A-Q Low Pass EMI Filter Fast Terminals Output Surface Mount / Bolts Mount

  • 1
  • 2

Brand Name : YBX

Model Number : YB11E2-6A-Q

Certification : CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 5-8 Work Days

Packaging Details : 56.5*28.5*22.5cm(one box)

Filter Name : Fast Terminals Power Filter

Type : EMI Filter

Rated voltage : 120/250VAC

Rated current : 1A~10A

Package type : Surface Mount

Operating frequency : 50/60HZ

Insertion loss : 30-100dB

Temperature range : 25/100/21

Contact Now

YB11E2-6A-Q EMI Filter Fast Terminals Output Filter Low Pass Filter



YB11E2-6A-Q Low Pass EMI Filter Fast Terminals Output Surface Mount / Bolts Mount

1.Product Details



Product NameFast Terminals Output Filter
ModelYB11E2-6A-Q
Transfer FunctionLow Pass
Package TypeSurface Mount/Bolts Mount
Nominal Center Frequency150K-30MHZ
Insertion Loss30~90dB
Input Impedance50Ω
Rated Voltage120V/250V
Rated Current1~10A
Environmental Temperature40°C
Temperature Range-25℃~+85℃
Operating Frequency50/60HZ
Line to Line500VDC
Line to Ground2250VDC
Maximum Leakage Current250VAC/60HZ 7mA Max
MOQ1000pcs
Packing of one box56.5*28.5*22.5cm
Lead Time5~20 weekday

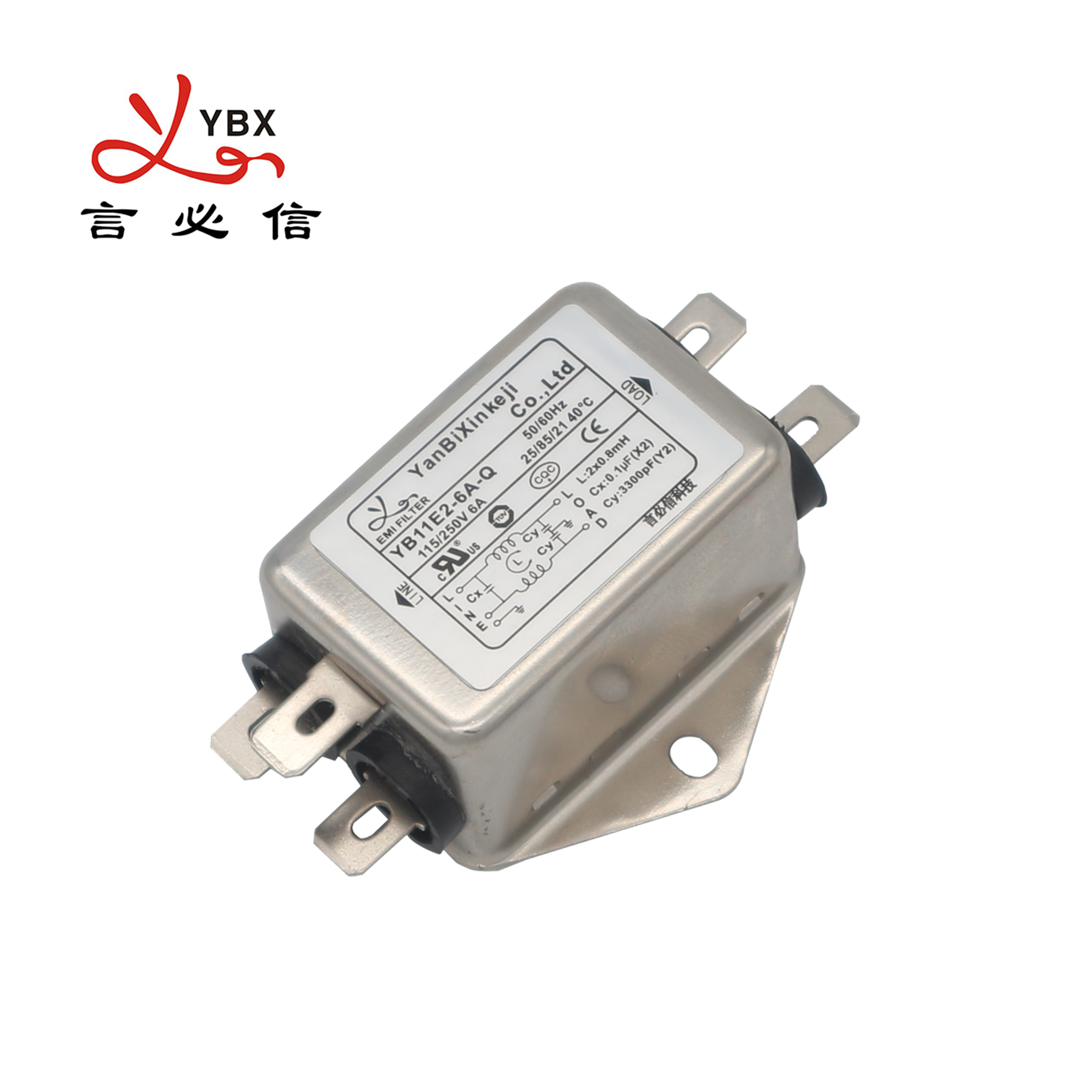

Product Picture:



YB11E2-6A-Q Low Pass EMI Filter Fast Terminals Output Surface Mount / Bolts MountYB11E2-6A-Q Low Pass EMI Filter Fast Terminals Output Surface Mount / Bolts Mount

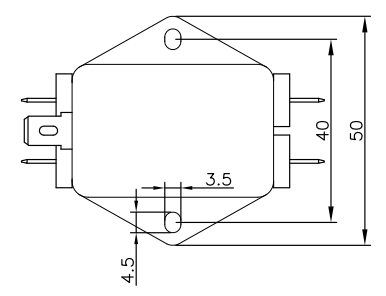

Physical Dimensional:

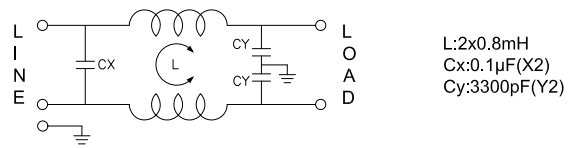

Electrical Schematic:





2.Application Field

--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles

YB11E2-6A-Q Low Pass EMI Filter Fast Terminals Output Surface Mount / Bolts Mount

3.Certification

We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.

YB11E2-6A-Q Low Pass EMI Filter Fast Terminals Output Surface Mount / Bolts Mount
4. FAQ

Q1: What is the price of the EMI Filter?
A1: The price of the product will be determined by the order quantity and the specific model.


Q2: Are you a factory or a trader?
A2: We are a manufacturer of EMI filters with 15 years of production experience.


Q3: How long is the delivery time?
A3: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


Q4: How about the payment terms?
A4: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.


Q5: What certifications do you have for your products?
A5: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
